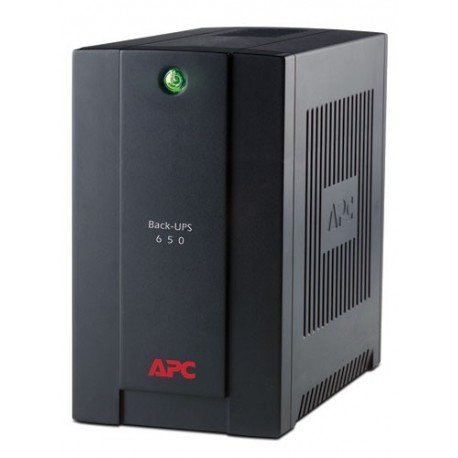

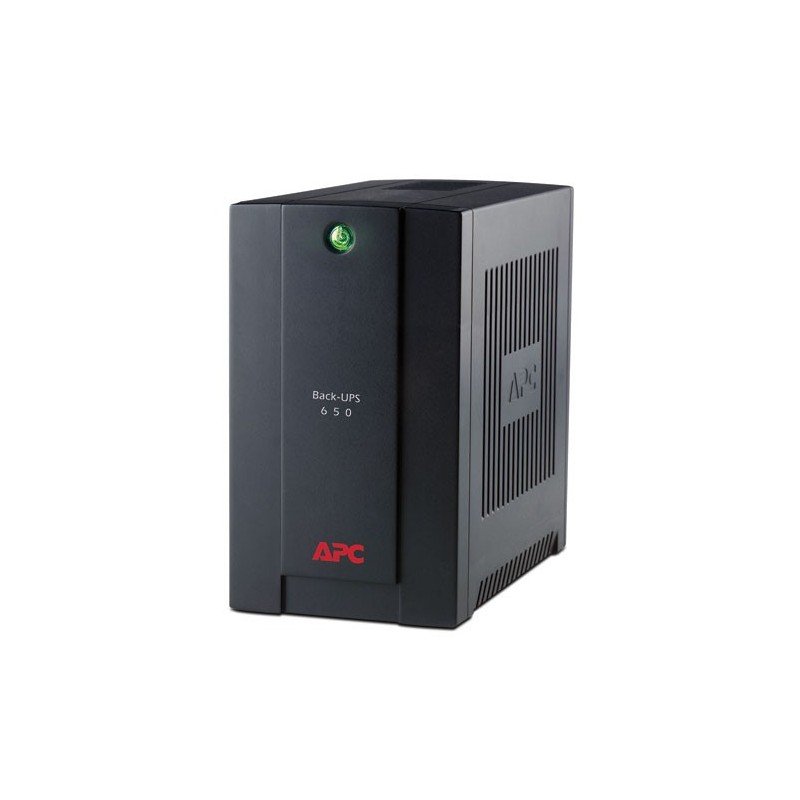

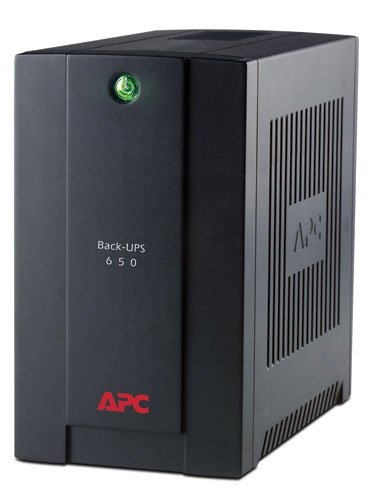

UPS APC Back-UPS,390 Watts /650 VA BX650CI-LMUPS APC Back-UPS,390 Watts /650 VA BX650CI-LM
AY-APC
New
APC Back-UPS,390 Watts /650 VA,Entrada 120V /Salida 120V, - Reparación, UPS para Computadores Domesticos y Perifericos // ECOLOGICAS // ECONOMICAS
More info
.jpg)
Salida
Output Power Capacity
390 Watts / 650 VA
Max Configurable Power
390 Watts / 650 VA
Nominal Output Voltage
230V
Efficiency at Full Load
96.0%
Output Frequency (sync to mains)
50/60Hz +/- 3 Hz
Topology
Line Interactive
Waveform Type
Stepped approximation to a sinewave

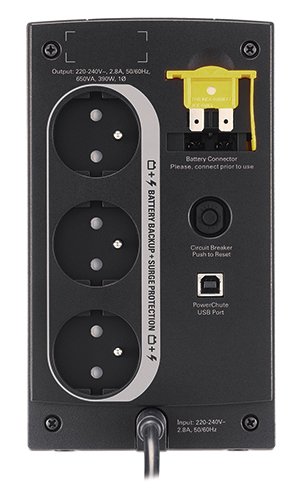

Output Connections
| (3) French/Belgian (Battery Backup) |
Efficiency at Half Load
94.0%
Entrada
Nominal Input Voltage
230V
Input Frequency
45 - 65 Hz
Input Connections
| Schuko CEE 7/7P |  |
Cord Length
1.16 meters
Input voltage range for main operations
140 - 300V
Maximum Input Current
3A
Input Breaker Capacity
7 A
Batteries & Runtime
Battery Type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time
8 hour(s)
Replacement Battery
RBC™ Quantity
1
Runtime Graph
Hover over the line on the graph above to view the runtime at any desired load
Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output.
Communications & Management
Interface Port(s)
USB
Control panel
LED Status display with On Line : On Battery
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Surge energy rating
273 Joules
Physical
Maximum Height
200.00 mm
Maximum Width
115.00 mm
Maximum Depth
257.00 mm
Net Weight
6.20 KG
Shipping Weight
6.50 KG
Shipping Height
270.00 mm
Shipping Width
198.00 mm
Shipping Depth
340.00 mm
Color
Black
SCC Codes
1073130429569 0
Units per Pallet
36.00
Environmental
Operating Environment
0 - 40 °C
Operating Relative Humidity
0 - 95%
Operating Elevation
0-900 meters
Storage Temperature
-15 - 40 °C
Storage Elevation
0-3000 meters
Audible noise at 1 meter from surface of unit
45.00 dBA
Conformance
Regulatory Approvals
CE
Standard Warranty
2 years repair or replace, 3 years repair or replace for European Union countries
Sustainable Offer Status
RoHS
Compliant
REACH
REACH: Contains No SVHCs
