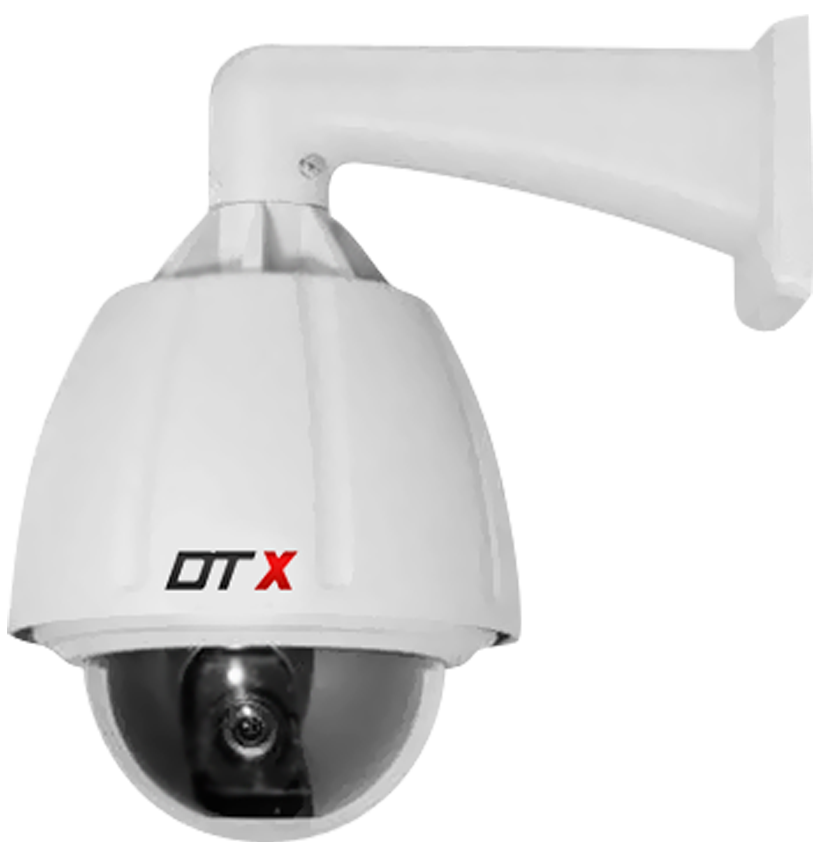

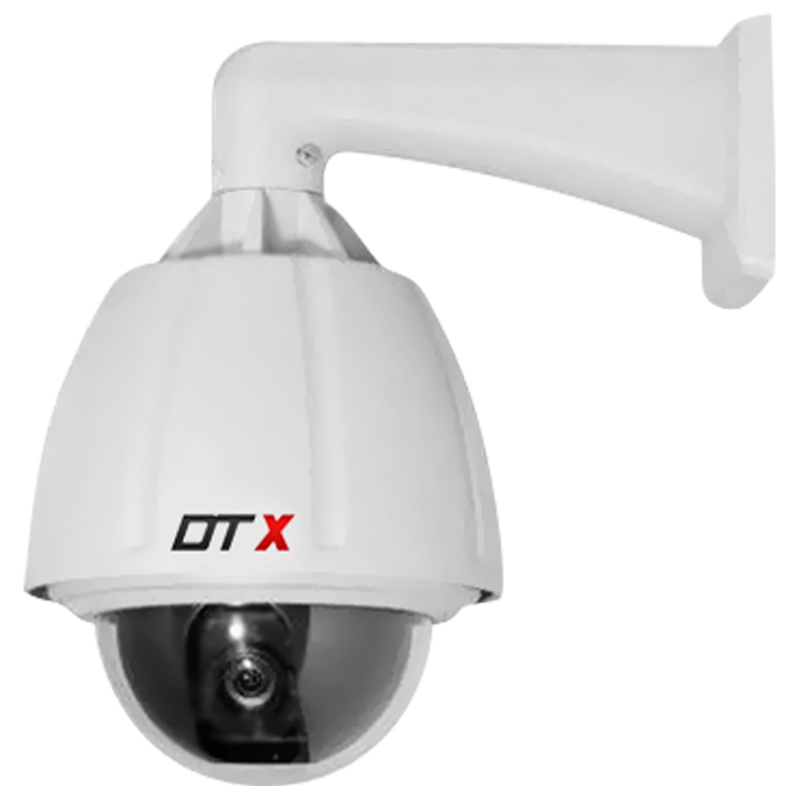

Camara analoga RC-65P18

Image Sensor

1/3" Super HAD II Sony CCD

Horizontal Resolution

Color 650TVL, Black 700TVL

CCD+DSP

Effio-e 18X(f=4.7~85mm),

Pixels

PAL:976 (H)× 494(V) NTSC :976 (H) ×582 (V)

TV System

PAL/NTSC

Lens

18X optical zoom lens

Sync System

Internal

Usable Illumination

0.001Lux/F2.0

S/N Ratio

≥65dB (AGC OFF)

Gamma Correction

0.45

Video Out

Composite Signal (1.0Vp-p, 75Ω)

Scanning System

PAL:625 Lines, 50 Field/Sec;NTSC:525 Lines, 60 Field/Sec

Electronic Shutter Time

Auto:PAL 1/50-1/100, 000Sec;NTSC 1/60-1/100, 000Sec

Operation  Temperature

-10? ~ +50? RH95% Max

Storage  Temperature

-20? ~ +60? RH95% Max

White Balance

Auto

Power Source

DC12V 700mA

Dimension

200x310mm

Package

59*56*27mm, 6PCS/CTN

Weight

4500g
