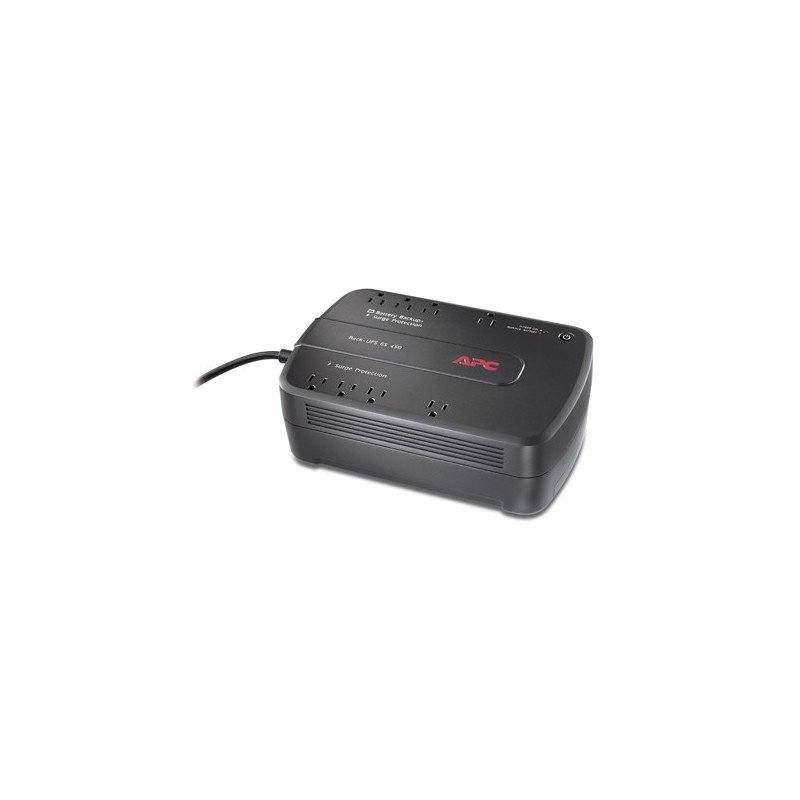

UPS APC 450 VA BE450G
AA-APC
Nuevo
Ahora la serie Back-UPS
UPS para Computadores Domesticos y Perifericos // ECOLOGICAS // ECONOMICAS.
- Enviar al correo Comparte Con Tus Socios
- Imprimir
Más
.jpg)
Especificaciones técnicas
Output
Output Power Capacity
257 Watts / 450 VA
Max Configurable Power
257 Watts / 450 VA
Nominal Output Voltage
120V
Output Frequency (sync to mains)
47 - 63 Hz
Topology
Standby
Waveform Type
Stepped approximation to a sinewave
Output Connections
| (4) NEMA 5-15R (Battery Backup) |  |
| (4) NEMA 5-15R (Surge Protection) | |
Input
Nominal Input Voltage
120V
Input Frequency
50/60 Hz +/- 3 Hz (auto sensing)
Input Connections
| NEMA 5-15P |  |
Cord Length
1.52 meters
Input voltage range for main operations
88 - 139V
Batteries & Runtime
Battery Type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time
24 hour(s)
Replacement Battery
RBC™ Quantity
1
Runtime Graph
Hover over the line on the graph above to view the runtime at any desired load
This graph is based on actual measured runtime data. All measurements were taken with new, fully charged batteries and a balanced resistive load (PF = 1.0). Actual runtimes may vary from the values of this graph. Actual runtimes are dependent on several variables including battery age, battery charge level, environmental conditions and characteristics of the connected load.
| Load | Efficiency |
| 25% | 95.3% |
| 50% | 97.1% |
| 75% | 97.6% |
| 100% | 97.7% |
Hover over the line on the graph above to view the efficiency at any desired load
Curve fit to measured efficiency data. All measurements taken in normal operating mode, at typical environmental conditions, with nominal electrical input and balanced resistive load (PF = 1.0) output.
Communications & Management
Interface Port(s)
USB
Control panel
LED status display with On Line : On Battery : Replace Battery and Building Wiring Fault
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Surge energy rating
365 Joules
Filtering
Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449
Data Line Protection
Analog phone line for phone/fax/modem/DSL (RJ-11 connector)
Physical
Maximum Height
88.00 mm
Maximum Width
180.00 mm
Maximum Depth
302.00 mm
Net Weight
4.70 KG
Shipping Weight
5.40 KG
Shipping Height
128.00 mm
Shipping Width
235.00 mm
Shipping Depth
393.00 mm
Master Carton Units
2.00
Master Carton Dimensions (Length x Width x Height)
405 mm
Master Carton Weight
11.40 KG
Color
Black
SCC Codes
1073130425893 0
Units per Pallet
64.00
# of Layers per Pallet
5
# of Units per Layer per Pallet
20
Environmental
Operating Environment
0 - 40 °C
Operating Relative Humidity
5 - 95%
Operating Elevation
0-3000 meters
Storage Temperature
-15 - 45 °C
Storage Relative Humidity
5 - 95%
Storage Elevation
0-15000 meters
Audible noise at 1 meter from surface of unit
45.00 dBA
Online Thermal Dissipation
16.00 BTU/hr
Conformance
Regulatory Approvals
cUL Listed, FCC Part 15 Class B, FCC Part 68, NOM, UL 1778, UL 497A, UL 497B
Standard Warranty
3 years repair or replace
Sustainable Offer Status
RoHS
Compliant
