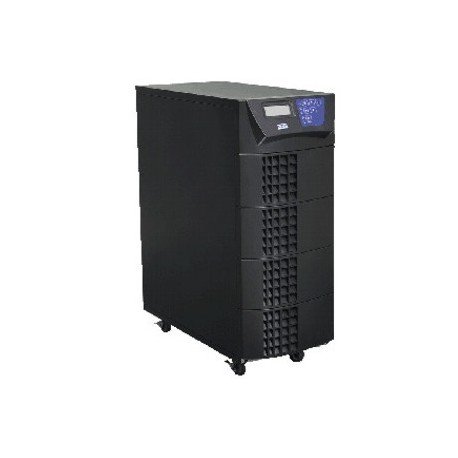

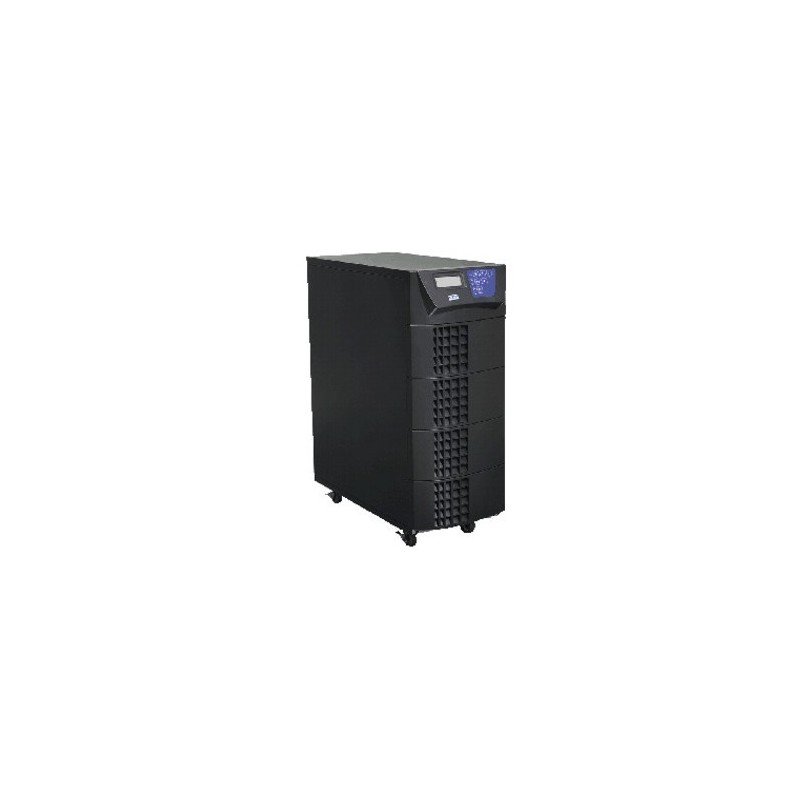

UPS 6KVA CDP ON LINE UPO22-6

CDP/04MAYO2018

Nuevo

6000 VA, 4800 W 0,9 PF. On Line, transferencia cero, UPS de onda senoidal pura ,banco de baterias de 20-7Ah baterias durante 8 min 100% de carga ,opciOn SNMP, software de monitoreo, tres cables de entrada de 220 ??VAC. salida 200/208/220/230/240/120 vca, 4 HR recarga al 90%, modo ECO para poder reducir el costo operacional, Bypass PDU compatible, Hot swapp 24 horas de prueba autom

Más detalles


Más

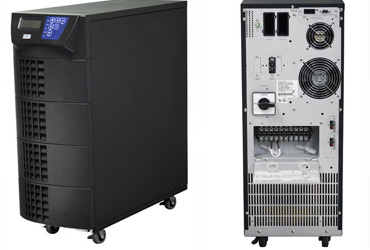

UPS  6KVA CDP ON LINE UPO22-6

UPO22-6 AX

6000 VA, 4200 Watt. On Line doble conversion, cero tiempo de transferencia, Onda senoidal pura, incluye banco de bateria ( 20baterias de 12v -7ah) para 8 min 100% factor de cresta 3:1, SNMP opcional, software de monitoreo incluido, 3% THD, 4 hilos F,F,N,T, voltaje de entrada de 220 VAC. Voltaje de salida de 220vca 120 vac, puerto de emergencia EPO, tiempo de recarga de 4 HR al 90%, modo ECO , Bypass automatico,baterias tipo Hot swapp 24 hour.

Spec ItemUPO 22-6UPO22-10UPO22-15
Capacity KVA
6.0 Kva10.0 Kva15.0 Kva
Capacity KW
4.8 Kva8.0 Kva12.0 Kva
Nominal Input Voltage
120 Vca two phase / 220 Vca one phase / 240 Vca
Input Voltage Range
160 to 280 Vac
Input Frequency Range
45 to 65 Hz
Input Phase/Wire
Single Phase three wire L-N-G or Single Phase 4 Wire L1-L2-N-G
Output Phase/ Wire
Single Phase 4 Wire L1-L2-N-G
Output Wave form
Pure Sine Wave
Output Voltage
240 and 120 Vac 4 Wire L1-l2-N-G
Output Voltage Range
240 Nominal (+-) 1%
Output Harmonic Distortion
THD <3% (No Load to Full Load)
Output Crest Factor
3:01
Output Frequency
50-60Hz Auto Syncronised or Selectable +- 1 Hz or 3 Hz
Transfer Time To Battery
Zero Ms
Battery Type & Number
240 Vdc 20 Pcs 12 V-7.0 Ah240 Vdc 20 Pcs 12 V-9.0 Ah
Back-up Time at 1/2 Load
20 Minutes14 Minutes
Back-up Time at Full Load
8 Minutes5 Minutes
AC to AC Efficiency (Green Factor)
Normal Up To 90% -On Eco Mode Up To 95%
Recharge Time to 90%
4 Hours
Output Outlets
Hard Wire 4 total
Input Connector
Hard Wire 3 or 4 total

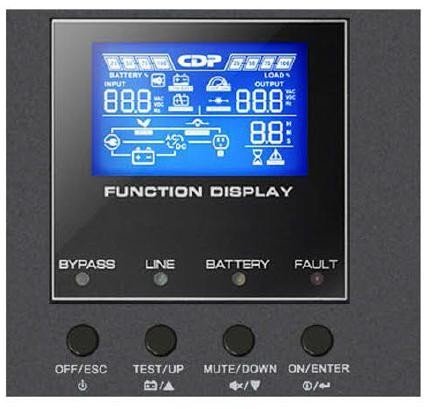

LCD Display Indicators
Input Voltage, Input Frequency, Output Voltage, Output Frequency, Load %, battery Voltage, Inner Temperature
LED Display Indicators
Line Mode, Back up Mode, ECO Mode, Bypass, Battery Low, Replace Battery, Battery disconnected, Overload, UPS Fail,
Auto-Diagnostics
Upon Power-On. Fron Panel Instant and setting, Software and 24Hr Routine
Audible and Visual Alarms
Line Failure, Battery Low, Transfer to Bypass, System Faults
Over Load Parameters
105% ~150% 160 Seconds
By-Pass Parameters
105% ~200% for 500 Seconds
Smart Communication ports
RJ 45 Comunication Port for Parrallel and Expansion + Rs232 for Local/Remote Monitoring- Software Included
Ambient Temperature range
0 to 40C/32 to104 F. Temperature Effects Battery Back Up Time, 90% RH non Condesing
Supported OS
Windows 95/98/2000/XP/ Novell. Linux
Smart Communication Interface
Optional RS232, USB, RS45, Dry Contact, WEB/SNMP on Seperate ports
Safety and Environmental Compliance
ISO9001 and ISO 1400
Safety and Performance Certifications
EN62040-1-1, UL 1778,EN62040,EN61000-3-2, FCC Class A Mark UL, cUL, CE, NOM
Unit Dimensions (L x W x H)
290 x 748 x 645 MM / 11.4 x 29.5 x 25.4 Inches290 x 881 x 645 MM/ 11.4 x 34.7 x 25.4 Inches
Shipping Weight

Universal Code (UPC)
e1934613563-210607186
N+1 Redundancy Capacity
24KVA or 18KVA + 6 KVA Redundant40KVA or 30 KVa +10 KVA Redundant
19 Inch Rack space in U's

Shipping Weight
245 Kg555 Kg685 Kg
3 Phase 100% load Un balanced Voltage


>
